Add On HD Switch Panel For 8 Circuit SE System Universal sPOD

<p>Add On Switch Panel For 8 Circuit SE System. Not compatible with Android 7.0 or newer as of yet. The Industry Leader In Power and Control Solutions. <br /><strong>What's Included?</strong></p>
<ul><li>10 Foot Ethernet control cable</li>
<li>HD Switch Panel w/ mounting bracket (see picture) and necessary hardware (other universal mounting options are available)</li>
<li>Legends (sheet of 72 standard switch reusable labels)</li>
<li>Installation Instructions</li>
</ul><p><strong>HD Switch Panel Features:</strong></p>

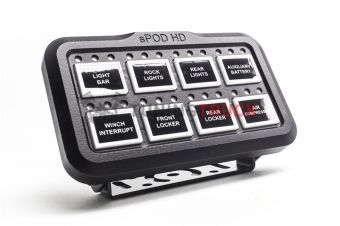

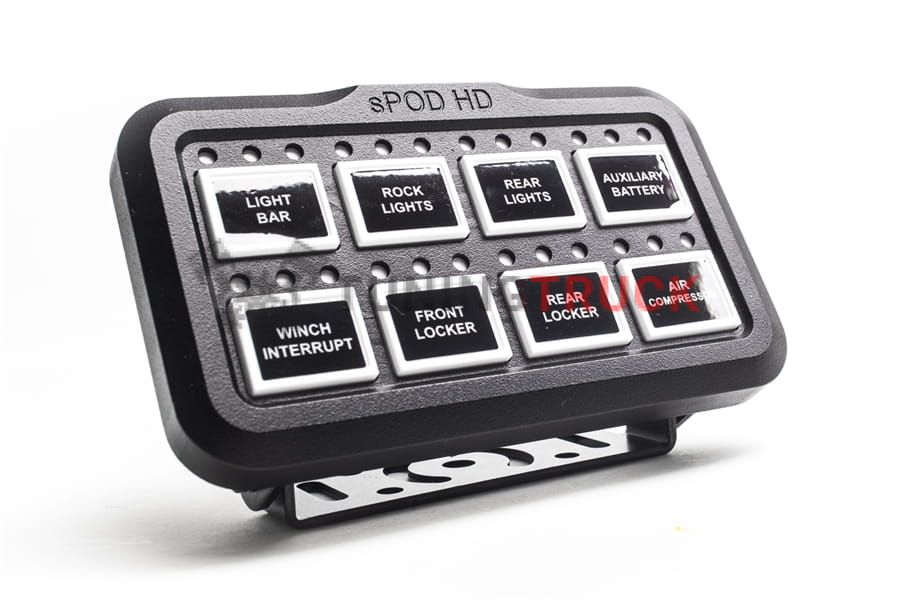

<ul><li>Encased in an aluminum billet machined housing, powdercoated black, utilizing tactile switches encapsulated in silicone.</li>
<li>Silicone Buttons with positive touch feedback.</li>
<li>Panel is designed to withstand the harshest environments with all weather conditions taken into account.</li>
<li>Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).</li>

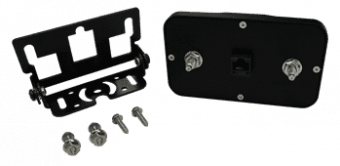

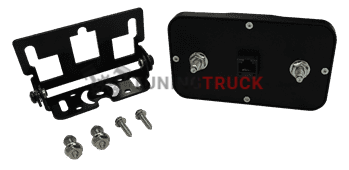

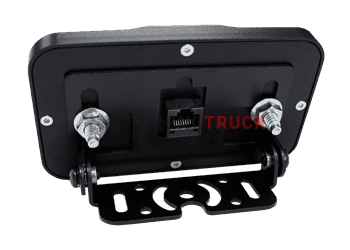

<li>Universal back with two pressed-in 1/4-20 studs x 5/8 inches long for flat mounting.</li>
<li>Standard universal articulating mount for a multitude of mounting options.</li>

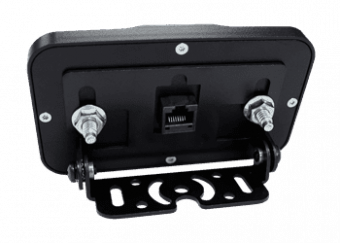

<li>One standard RJ45 jack on back for communication cable between HD panel and the Source.</li>
<li>HD can be located up to 100 feet from the Source using standard CAT-6 Ethernet cable.</li>
<li>Built in Bluetooth LE allows you to program and control our system with iPhones, iPad, iPad Mini, sPOD HD app. (free download)</li>
<li>Each switch programmable for dimming, flash, momentary, strobe, and switch linking (program any switch to be a master to control other switches).</li>
<li>All 8 switches are backlit.</li>
<li>Adjustable timer to turn backlight off and a simple touch on any switch to reactivate.</li>
<li>Quickly turn backlight off by holding 2 designated buttons.</li>
<li>Backlight color and intensity can be changed to any color to match vehicle interior dash lighting.</li>
<li>Legends can be applied (comes standard with one sheet of 72 legends).</li>
<li>Each switch has 3 status lights: Red (left) = On, White (center) = Flash/Strobe active, Blue (right) = Active visual feedback when button is pushed.</li>
<li>Status lights can be dimmed.</li>
<li>Additional HD smart controller can be added for different locations.</li>
<li>One HD smart controller can be programmed to control up to 32 circuits</li>
<li>HD can run in conjunction with our SE Touchscreen, Bluetooth and SE 8 Switch panel.</li>
</ul><p><strong>Note:</strong><br />Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor t \hat is required in order for the lights to function properly.</p>
